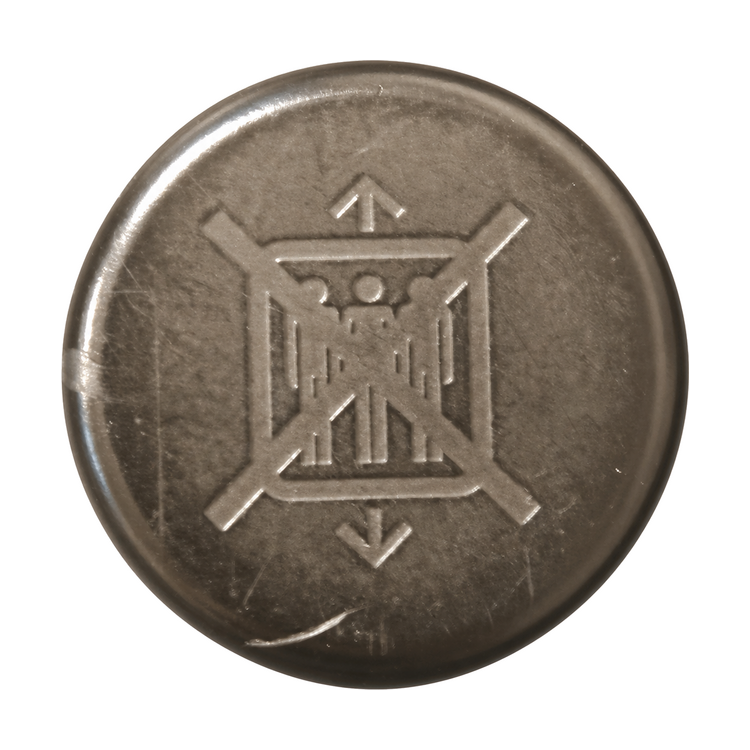

Kone KM804145G02 KSS out-of-service indicator front symbol view

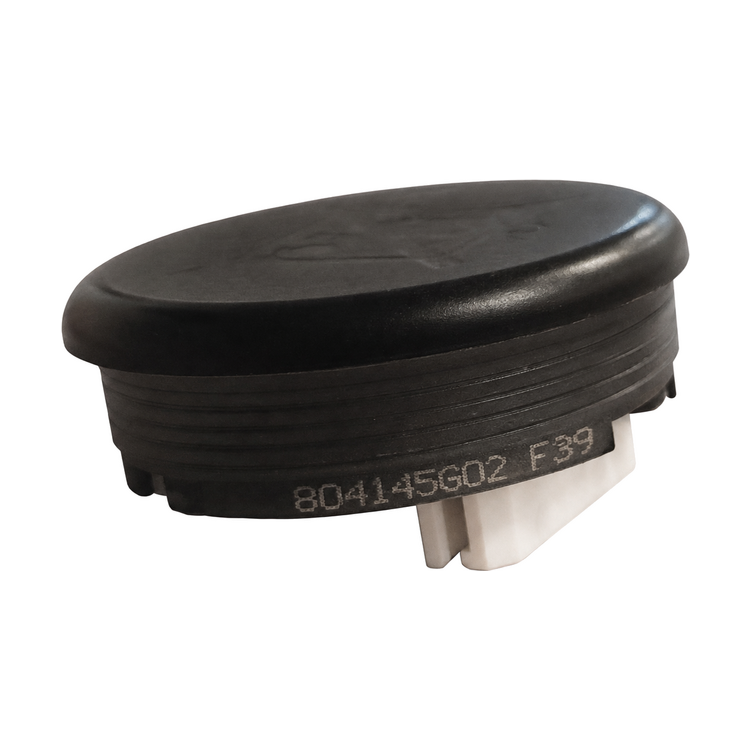

Kone 804145G02 KSS out-of-service indicator side body view showing F39 marking

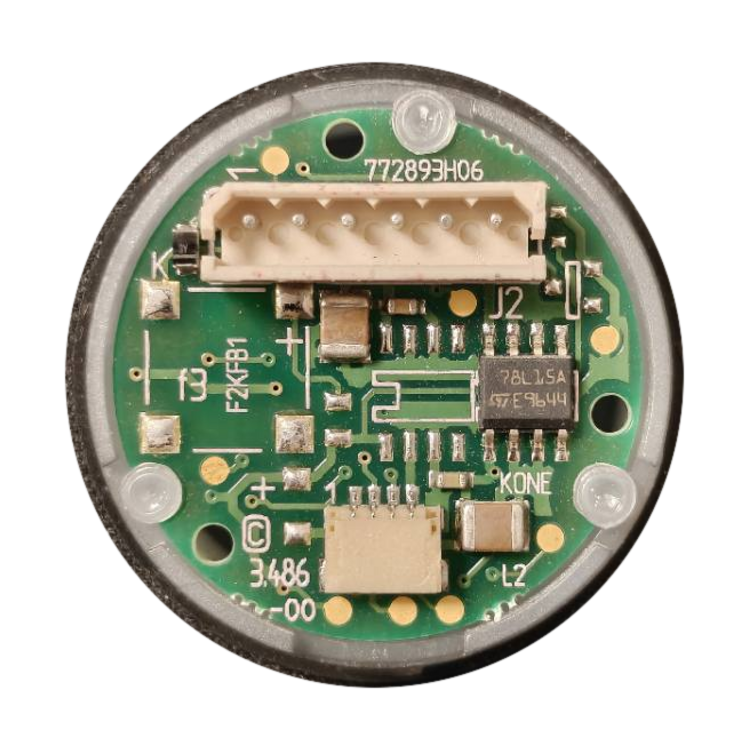

Kone 804145G02 KSS out-of-service indicator PCB 772893H06 F2KFB1 rear view
Kone KM804145G02 KSS out-of-service indicator front symbol view
Kone 804145G02 KSS out-of-service indicator side body view showing F39 marking
Kone 804145G02 KSS out-of-service indicator PCB 772893H06 F2KFB1 rear view

Vi strävar efter att ha korrekta produktbilder, men illustrationer kan förekomma.

Kone

Kone OSI Out of Service Indicator KSS KM804145G02 - Refurbished B

SKU: KM804145G02-B Streckkod: 7340233136705
I lager - 2 artiklar tillgängliga
Delivery expected between 23 October and 26 October
Identifiers & specifications
  • Typ Call button
  • Kompatibel med Kone
  • SKU KM804145G02-B
  • Barcode 7340233136705

Kone OSI Out of Service Indicator KSS KM804145G02 - Refurbished B

Reconditioned Unit (Grade B)

Condition: Used and has some scuffs. Fully tested and in perfect working condition. May show cosmetic signs such as scratches or marks. Original packaging may not be included.

Cost-efficient option also ideal for testing, troubleshooting, or other projects.

Product Overview

Original KONE round illuminated OSI (Out of Service Indicator) module for KSS signalization. The black cap carries the crossed-out lift pictogram used to indicate that the lift is out of service, as required by EN 81-73. Supplied as the complete module: bezel, translucent diffuser body, indicator PCB and symbol cap.

The G02 variant is externally identical to KM804145G01 and uses the same board number, 772893H06 (revision 3.486-00), but a different build: this unit is the F2KFB1 variant, populated with a single 78L15A regulator, whereas the G01 build additionally carries a 78L33A regulator and a magnetic component. Check the board against your existing unit if the electrical interface matters for your application.

Technical Specifications

  • Body Moulding Number: 804145G02
  • Board Number: 772893H06, revision 3.486-00
  • Board Type: F2KFB1
  • Function: Out of Service Indicator (OSI), illuminated
  • Symbol: Crossed-out lift pictogram (EN 81-73 out of service)
  • Component Family: KSS (KONE Signalization System)
  • Diameter: Approx. 30 mm round module
  • Related Variant: KM804145G01 (same housing, different indicator board)
  • Scope of Supply: Indicator module only – faceplate and wiring not included
