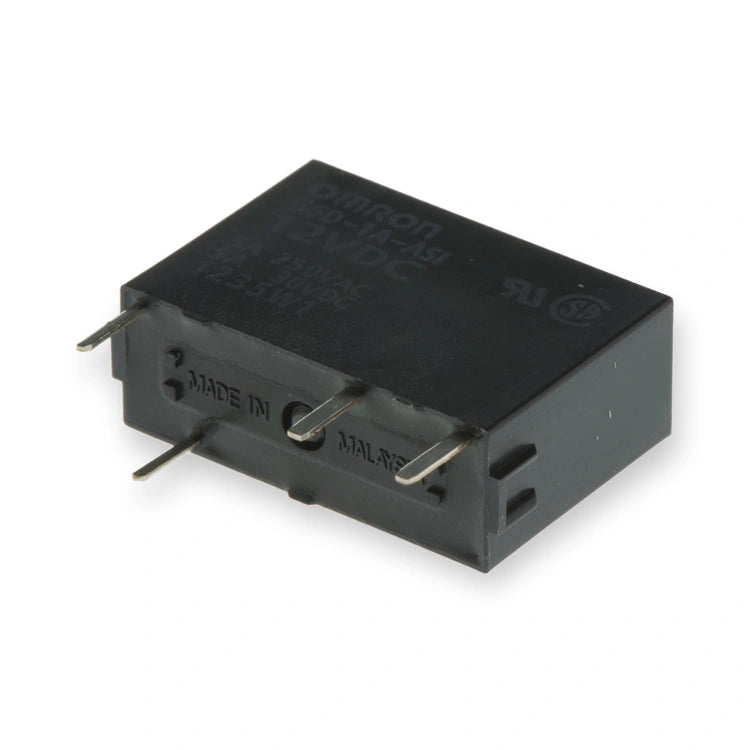

Omron Relais SPST 12V DC 5A PCB Montage G6D-1A-ASI DC12

SKU: G6D-1A-ASI-DC12 Streepjescode: 7340233128540
Normale prijs 27 SEK
Op voorraad - 5 artikelen beschikbaar
Delivery expected between 20 November and 23 November
Identifiers & specifications
  • Type Relais
  • Compatibel met Omron
  • SKU G6D-1A-ASI-DC12
  • Barcode 7340233128540

Omron Relais SPST 12V DC 5A PCB Montage G6D-1A-ASI DC12

Dit Omron-relais is een industriële elektronische component die is ontworpen voor schakeltoepassingen in liften, roltrappen en andere geautomatiseerde systemen.

  • Identificatie / Referentie: SKU: G6D-1A-ASI DC12
  • Spoelspanning: 12V DC
  • Contactconfiguratie: SPST (Single Pole Single Throw)
  • Schakelstroom: 5A
  • Montagetype: PCB-montage, doorlopend gat
  • Contactmateriaal: Zilver
  • Spoelweerstand: 720Ω
  • Afmetingen (L x B x H): 18,5 mm x 6,5 mm x 12,5 mm
  • Bedrijfstemperatuur: -25°C tot +70°C
  • Serie: G6D
  • Maximaal schakelvermogen: 150 W DC / 1,25 kVA AC
  • Compatibele modellen: Geschikt voor diverse lift- en industriële bedieningspanelen die 12V DC SPST-relais vereisen
