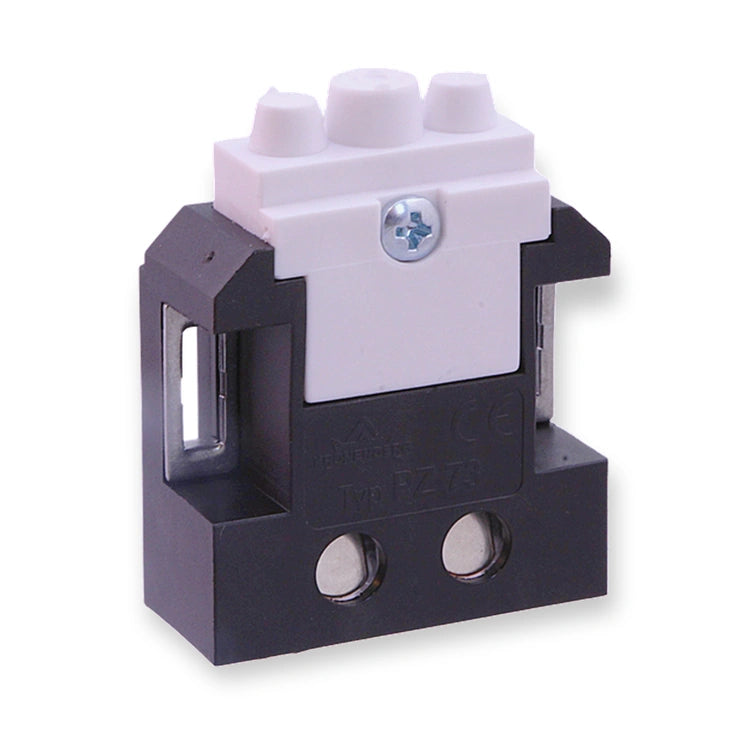

Kronenberg PZ73-D lock contact, cover side with fixing screw and type marking, on white background.

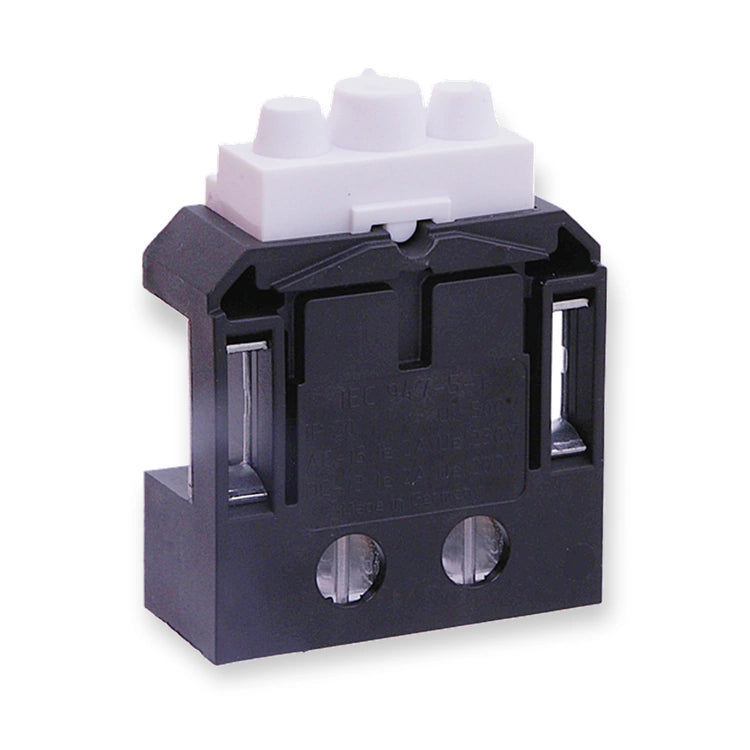

Kronenberg PZ73-D lock contact, rear side showing contact springs and rating text, on white background.
Kronenberg PZ73-D lock contact, cover side with fixing screw and type marking, on white background.
Kronenberg PZ73-D lock contact, rear side showing contact springs and rating text, on white background.

Dokładamy wszelkich starań, aby zdjęcia produktów były dokładne, jednak mogą się w nich pojawiać ilustracje.

Kronenberg

Kronenberg PZ73-D Lock Contact 6A 380VAC OEM

SKU: PZ73-D Kod kreskowy: 7340233124801
W magazynie - 8 dostępnych produktów
Delivery expected between 12 November and 13 November
Identifiers & specifications
  • Typ Lock contact
  • Kompatybilny z Kronenberg
  • SKU PZ73-D
  • Barcode 7340233124801

Kronenberg PZ73-D Lock Contact Door Contact 6A 380VAC

Original Kronenberg PZ 73 safety switch with positive contact, cover side actuation. It controls the close position of elevator doors and serves as the switch for the locking mechanism on automatic doors. Mirror variant of the Kronenberg PZ73-B, which has base side actuation.

  • Identifiers: PZ73-D, PZ-73/D, 7340233124801
  • Type: Door contact, safety switch with positive contact
  • Actuation: Cover side
  • Electrical Rating: 6A 380VAC, 2A 220VDC
  • Contacts: Fine silver, self-cleaning
  • Enclosure: Self-extinguishing thermoplastic, IP20
  • Compliance: EN 81-20, EN 81-50, EN 60947-5-1
  • Actuated by contact bridges: PZ 18, PZ 21 or PZ 24
  • Vendor: Hans & Jos. Kronenberg GmbH
  • Material Group: 03110 - Door Contacts, B526 - Safety contacts
  • Gross Weight: 0.04 kg
