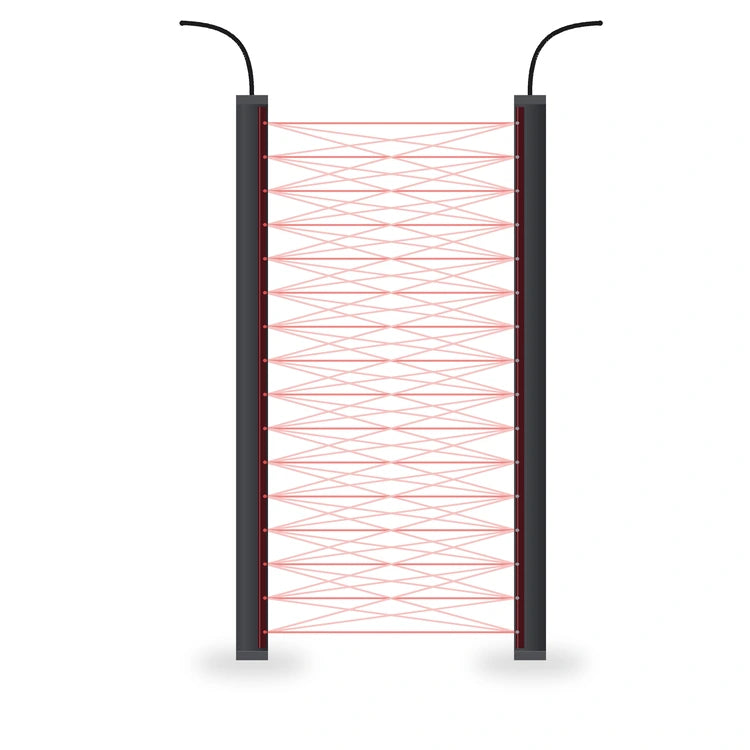

Lift door light curtain transmitter and receiver bars with infra-red beam pattern, illustration on white background.
Lift door light curtain transmitter and receiver bars with infra-red beam pattern, illustration on white background.

We strive to have accurate product images, but illustrations may appear.

WECO

WECO Welig Light Curtain Kit SIL 2, Cat. 2, Profil J, 1840mm EN 62061/SIL 2

SKU: 03.WELIG.J3.184 Barcode: 7340233136972
Available on backorder
Identifiers & specifications
  • Type Light curtain
  • Compatible with WECO
  • SKU 03.WELIG.J3.184
  • Barcode 7340233136972

WECO Welig Light Curtain – SIL 2 / Cat. 2, Profil J, 1840mm Complete Kit

Complete safety light curtain kit for monitoring elevator car door closure, designed in compliance with SIL 2 and Category 2 safety standards. This version uses Profil J for front mounting and includes all essential components for fast, secure installation in lift systems.

Key Specifications

  • Safety Rating: SIL 2 / Cat. 2 (EN 62061, EN ISO 13849-1/-2)
  • Profile: Profil J – Front mounting
  • Dimensions: Depth 10 mm, Width 24 mm, Length 1840 mm
  • Detection Distance: 0.5 to 2 meters
  • Power Supply: 12–24 VDC
  • Cable Length: 3.5 meters
  • Weight: 4.262 kg

Standards & Compliance

  • EN 13849-1 and EN 13849-2
  • ISO 22201, EN 12016
  • EN 60068-2-6 / EN 60068-2-27 (vibration and shock)
  • EU Machinery Directive 2006/42/EC

Kit Includes

  • Sender and receiver list (light curtain)
  • Controller (car top box)
  • 3.5 m power cables and mounting accessories

Datasheet_03.WELIG.J3.184

Compliance_sheet_03.WELIG.J3.184

Designed for elevator applications where reliable door protection and compliance with modern safety regulations are critical. Compact, easy to mount, and built for long-term use in high-traffic environments.
