Home » Omron G5LE-1A 5VDC Relay SPST 5V DC 10A PCB Mount

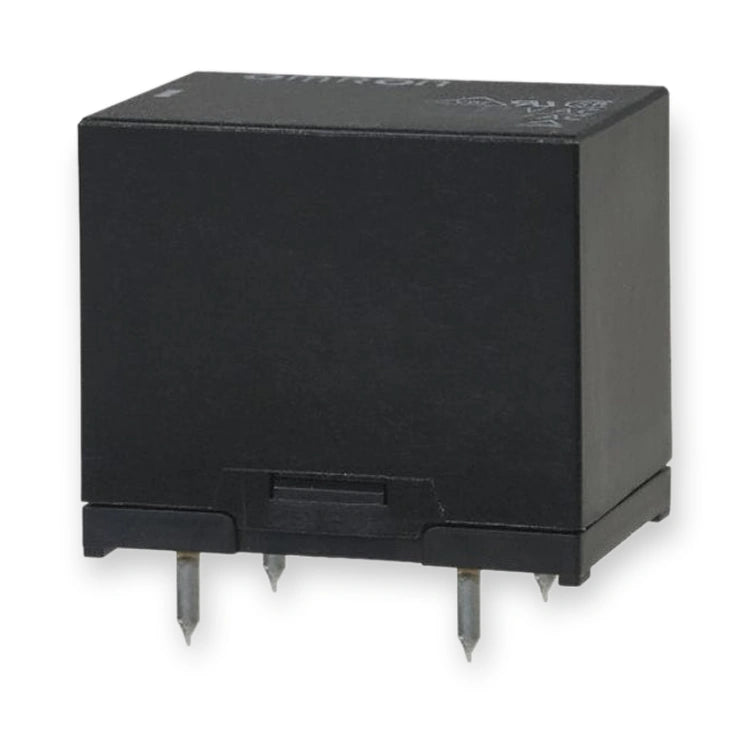

Omron G5LE-1A 5VDC Relay SPST 5V DC 10A PCB Mount (G5LE-1A-5DC), black rectangular housing with metal pins and top label markings, on white background.
Omron G5LE-1A 5VDC Relay SPST 5V DC 10A PCB Mount (G5LE-1A-5DC), black rectangular housing with metal pins and top label markings, on white background.

We strive to have accurate product images, but illustrations may appear.

Omron

Omron G5LE-1A 5VDC Relay SPST 5V DC 10A PCB Mount

SKU: G5LE-1A-5DC Barcode: 7340233137825
15 SEK
In stock - 10 items ready to ship
Delivery expected between 12 November and 13 November
Identifiers & specifications
  • Type Relay
  • Compatible with Omron
  • SKU G5LE-1A-5DC
  • Barcode 7340233137825

Omron SPST 5V DC 10A PCB Mount Relay G5LE-1A 5DC

This relay is an electronic switching component designed for PCB mounting in elevator, escalator, or industrial control systems.

  • Identifier / Reference: SKU: G5LE-1A-5DC
  • Vendor: Omron
  • Series: G5LE
  • Coil Voltage: 5V DC
  • Contact Configuration: SPST
  • Switching Current: 10A
  • Mounting Type: PCB Mount
  • Terminal Type: PCB Pin
  • Contact Material: Silver Alloy
  • Coil Resistance: 63Ω
  • Dimensions (L x W x H): 22.5mm x 16.5mm x 19mm
  • Operating Temperature: -25°C to +85°C
  • Maximum Switching Power (DC): 240 W
  • Maximum Switching Power (AC): 1.2 kVA
  • Latching: No
  • Application: Power control for elevators, escalators, and industrial equipment.
  • Compatible Models: Suitable for various elevator and industrial control systems using 5V DC relay inputs.
