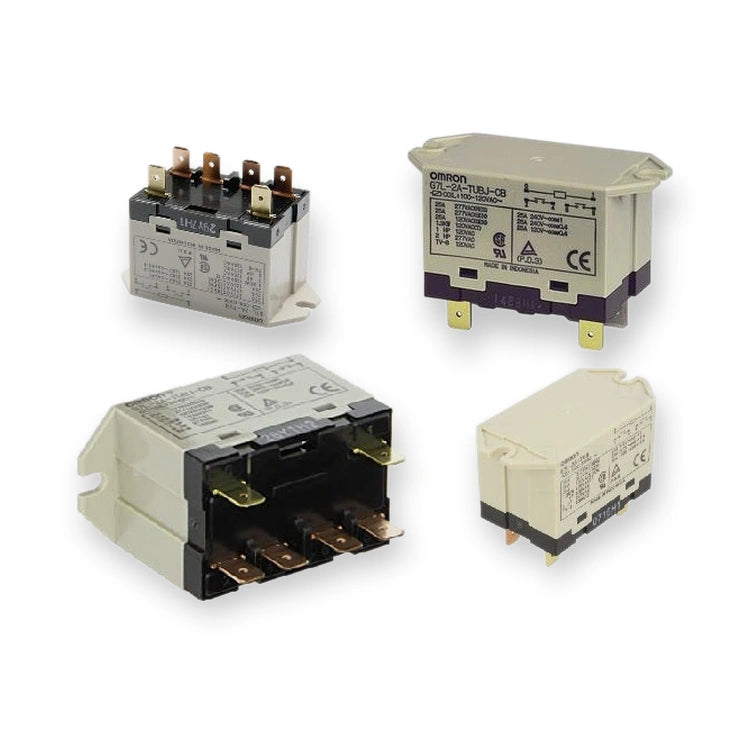

Omron Relay DPST 24V DC 25A Panel Mount G7L-2A-TUB DC24

SKU: G7L-2A-TUB-DC24 Barcode: 7340233128786
Regular price 106 SEK
In stock - 2 items ready to ship
Delivery expected between 24 November and 25 November
Identifiers & specifications
  • Type Relay
  • Compatible with Omron
  • SKU G7L-2A-TUB-DC24
  • Barcode 7340233128786

Omron G7L-2A-TUB DC24 DPST Panel Mount Relay 24V DC

This industrial relay is designed for reliable switching in elevator and lift control panels, providing high capacity and durability for various automation applications.

  • Identifier/Reference: SKU: G7L-2A-TUB DC24
  • Coil Voltage: 24V DC
  • Contact Configuration: DPST (Double Pole Single Throw)
  • Switching Current: 25A
  • Maximum Switching Voltage: 250V AC
  • Mounting Type: Panel Mount
  • Terminal Type: Quick Connect
  • Coil Resistance: 303Ω
  • Coil Power: 1.9W
  • Isolation Coil to Contact: 4kV AC
  • Contact Material: Silver Alloy
  • Operating Temperature: -25°C to +60°C
  • Series: G7L
  • Life Expectancy: 100,000 cycles
  • Dimensions (L x D x H): 50.5mm x 33.5mm x 53mm
  • Maximum Switching Power AC: 5.5 kVA
  • Application: General Purpose, suitable for elevator, escalator, and industrial control panels
  • Compatible Models: Universal use in panels with compatible voltage and mounting requirements
