Omron

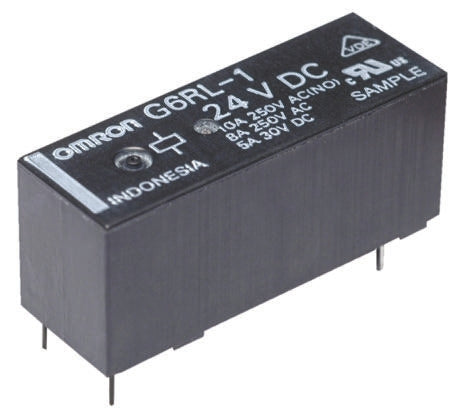

Omron Relay 24V DC SPDT 10A G6RL-1-ASI DC24

Available at supplier
SKU: G6RL-1-ASI-DC24 Barcode: 7340233128984
Speedy Delivery options at checkout
Secure payment with bank transfer, card, or invoice
Delivery from our warehouse in Sweden to customers worldwide
27 SEK

Omron G6RL-1-ASI DC24 Relay for Lift Electronics

This relay is an electronic component designed for switching power circuits in elevator and lift control systems.

  • Identifier / Reference: SKU G6RL-1-ASI DC24
  • Coil Voltage: 24V DC
  • Contact Configuration: SPDT (Single Pole Double Throw)
  • Mounting Type: PCB Mount (Through Hole)
  • Switching Current: 10A
  • Contact Material: Silver Alloy
  • Isolation Coil to Contact: 5kV AC
  • Coil Resistance: 2618Ω
  • Coil Power: 220mW
  • Maximum Switching Power AC: 2.5kVA
  • Maximum Switching Power DC: 150W
  • Operating Temperature Range: -40°C to +85°C
  • Electrical Life: 50,000 cycles
  • Series: G6RL
  • Dimensions: 28.5mm (L) x 10mm (D) x 12.3mm (H)
  • Country of Origin: China
  • Compatible Models: Suitable for a wide range of lift, elevator, and industrial PCB electronic control applications requiring a 24V DC relay
