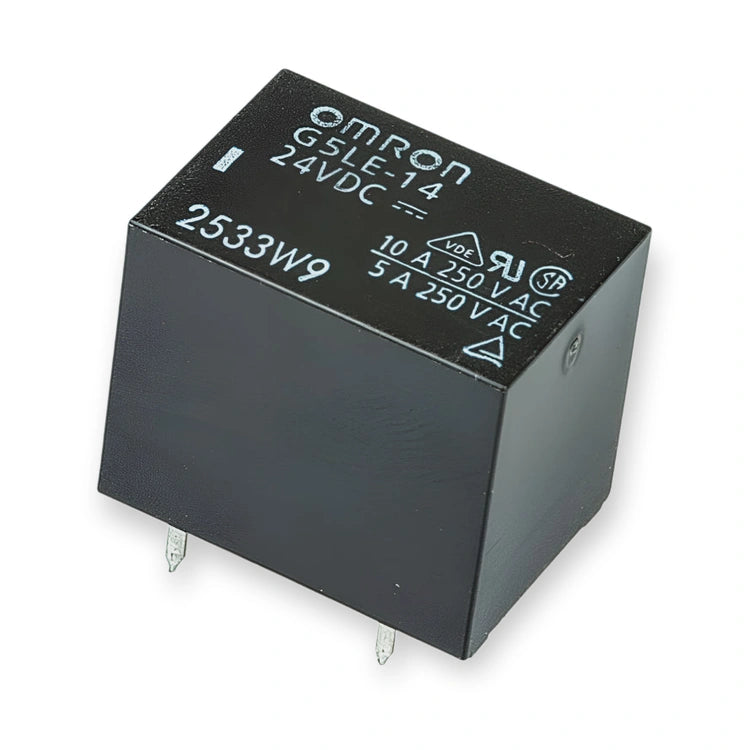

Omron Relay 24V DC 10A SPST-NO PCB Mount G5LE-14-DC24, top view of black rectangular housing with white printed markings and pins, on white background.
Omron Relay 24V DC 10A SPST-NO PCB Mount G5LE-14-DC24, top view of black rectangular housing with white printed markings and pins, on white background.

We strive to have accurate product images, but illustrations may appear.

Omron

Omron Relay 24V DC 10A SPST-NO PCB Mount G5LE-14-DC24

SKU: G5LE-14-DC24 Barcode: 7340233137894
22 SEK
In stock - 23 items ready to ship
Delivery expected between 13 November and 16 November
Identifiers & specifications
  • Type Relay
  • Compatible with Omron
  • SKU G5LE-14-DC24
  • Barcode 7340233137894

Omron 24V DC SPST-NO PCB Mount Relay G5LE-14-DC24

This industrial relay is designed for reliable switching in elevator, escalator, and power control applications.

  • Identifier / Reference: SKU: G5LE-14-DC24, replaces G5LE-1-DC24
  • Coil Voltage: 24V DC
  • Contact Configuration: SPST-NO (Single Pole Single Throw - Normally Open)
  • Switching Current: 10A
  • Mounting Type: PCB Mount
  • Terminal Type: PCB Pin
  • Coil Resistance: 1440Ω
  • Contact Material: Silver Alloy
  • Max Switching Power AC: 1.2 kVA
  • Max Switching Power DC: 240 W
  • Operating Temperature Range: -25°C to +85°C
  • Series: G5LE
  • Dimensions (L x D x H): 22.5mm x 16.5mm x 19mm
  • Application: Power, elevator and escalator control panels
  • Compatible Models: Universal for systems requiring 24V DC relay, check specification compliance
