Omron Relay 12V DC SPDT 12A PCB Mount G2RL-1 DC12

SKU: G2RL-1-DC12 Barcode: 7340233150664
Regular price 19 SEK
In stock - 13 items ready to ship
Delivery expected between 20 November and 23 November
Identifiers & specifications
  • Type Relay
  • Compatible with Omron
  • SKU G2RL-1-DC12
  • Barcode 7340233150664

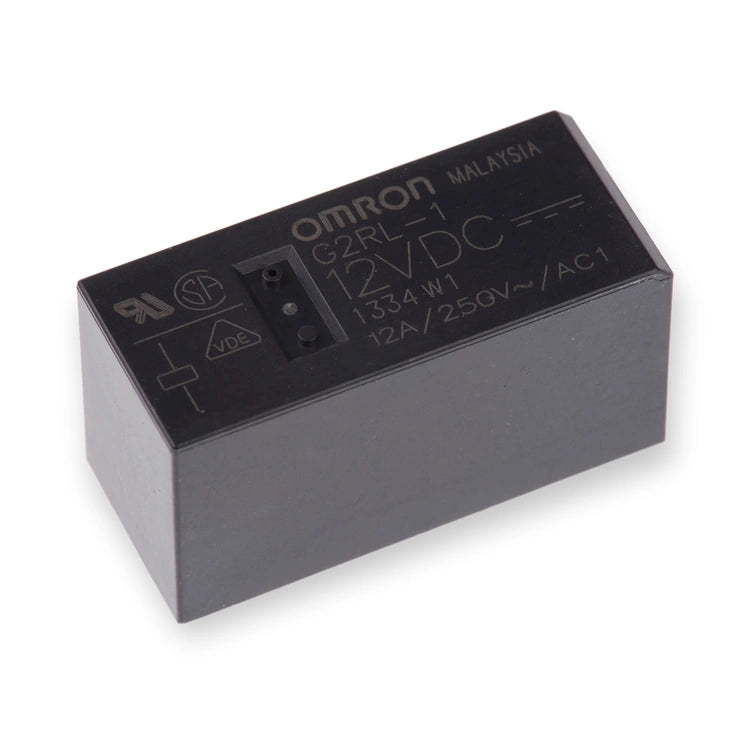

Omron Relay 12V DC SPDT 12A PCB Mount G2RL-1 DC12

This relay is an electromechanical switching component designed for power applications in lift and industrial control systems.

  • Identifier / Reference: SKU: G2RL-1 DC12
  • Coil Voltage: 12V DC
  • Contact Configuration: SPDT (Single Pole Double Throw)
  • Mounting Type: PCB Mount, Through Hole
  • Switching Current: 12A
  • Coil Resistance: 360Ω
  • Coil Power: 400mW
  • Contact Material: Silver
  • Operating Temperature Range: -40°C to +85°C
  • Isolation Coil to Contact: 5kV AC
  • Electrical Life: 20,000,000 cycles
  • Maximum Switching Power (AC): 3 kVA
  • Dimensions: 29mm x 15.7mm x 12.7mm
  • Series: G2RL
  • Country of Origin: China
  • Compatible Models: Universal for elevator, escalator, or industrial control PCBs requiring a 12V DC SPDT relay of this specification
