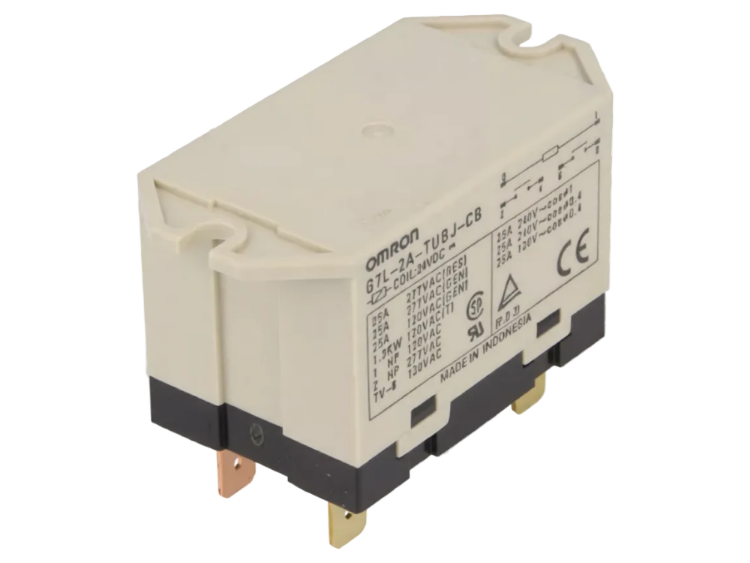

Omron G7L-2A-TUBJ-CB Relay 25A AC200/240 (G7L-2A-TUBJ-CB-AC200-240), beige relay with printed label and metal pins, viewed from above, on white background.

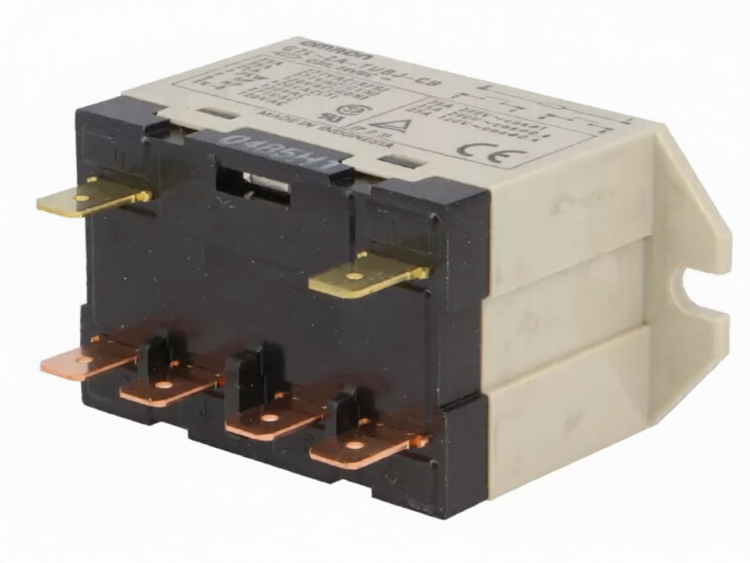

Omron G7L-2A-TUBJ-CB Relay 25A AC200/240 (G7L-2A-TUBJ-CB-AC200-240), top label and copper terminals viewed from an angled side perspective, on white background.
Omron G7L-2A-TUBJ-CB Relay DPST-NO 24V DC 25A Panel Mount AC200/240
Omron G7L-2A-TUBJ-CB Relay 25A AC200/240 (G7L-2A-TUBJ-CB-AC200-240), beige relay with printed label and metal pins, viewed from above, on white background.
Omron G7L-2A-TUBJ-CB Relay 25A AC200/240 (G7L-2A-TUBJ-CB-AC200-240), top label and copper terminals viewed from an angled side perspective, on white background.
Omron G7L-2A-TUBJ-CB Relay DPST-NO 24V DC 25A Panel Mount AC200/240

We strive to have accurate product images, but illustrations may appear.

Omron

Omron G7L-2A-TUBJ-CB Relay 25A AC200/240

SKU: G7L-2A-TUBJ-CB-AC200-240 Barcode: 7340233137603
108 SEK
In stock - 13 items ready to ship
Delivery expected between 29 October and 30 October
Identifiers & specifications
  • Type Relay
  • Compatible with Omron
  • SKU G7L-2A-TUBJ-CB-AC200-240
  • Barcode 7340233137603

Omron G7L-2A-TUBJ-CB-AC200/240 Industrial Power Relay

This industrial relay is an electromagnetic, panel-mount component designed for reliable high-current switching in elevators, escalators, and other industrial applications.

  • Identifier / Reference: G7L-2A-TUBJ-CB-AC200/240, SKU: G7L-2A-TUBJ-CB-AC200/240, Barcode: 7340233137603
  • Type: Electromagnetic power relay
  • Contact Configuration: DPST-NO (Double Pole Single Throw - Normally Open)
  • Rated Coil Voltage: 24V DC
  • Maximum Contact Current: 25A
  • Maximum Switched Voltage: 250V AC
  • Coil Current: 79mA
  • Coil Resistance: 303Ω
  • Coil Power Consumption: 1.9W
  • Contact Resistance: 50mΩ
  • Mounting: Panel mount
  • Body Dimensions: 68.5 x 33.5 x 47mm
  • Leads / Terminals: Connectors, 6.35 x 0.8mm
  • Operating Temperature: -25°C to 60°C
  • Manufacturer Series: G7L
  • Compatible Models: Suitable for use in elevator, escalator, and industrial control panels requiring high-current relays
