Home » Omron D2FC-F-7N(20M) Relay Snap Action Microswitch SPST-NO

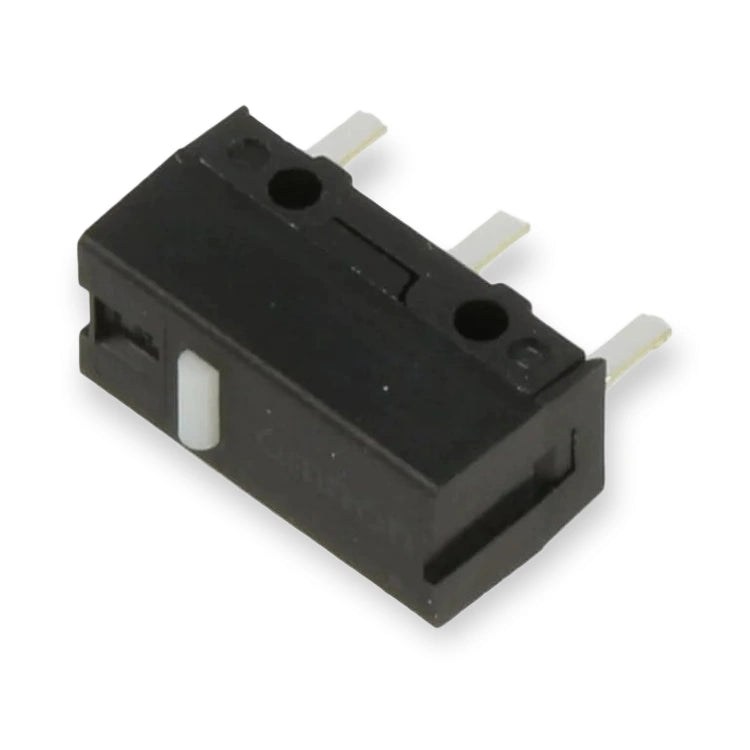

Omron D2FC-F-7N(20M) Relay Snap Action Microswitch SPST-NO (D2FC-F-7N-20M), black rectangular switch with white actuator and three metal pins, on white background.
Omron D2FC-F-7N(20M) Relay Snap Action Microswitch SPST-NO
Omron D2FC-F-7N(20M) Relay Snap Action Microswitch SPST-NO (D2FC-F-7N-20M), black rectangular switch with white actuator and three metal pins, on white background.
Omron D2FC-F-7N(20M) Relay Snap Action Microswitch SPST-NO

We strive to have accurate product images, but illustrations may appear.

Omron

Omron D2FC-F-7N(20M) Relay Snap Action Microswitch SPST-NO

SKU: D2FC-F-7N-20M Barcode: 7340233137689
5 SEK
In stock - 11 items ready to ship
Delivery expected between 17 November and 18 November
Identifiers & specifications
  • Type Relay
  • Compatible with Omron
  • SKU D2FC-F-7N-20M
  • Barcode 7340233137689

Omron Relay Snap Action Microswitch SPST-NO D2FC-F-7N(20M)

This industrial microswitch is designed for precise snap action switching in elevator, escalator, or automation control panels.

  • Identifier: SKU D2FC-F-7N(20M), Barcode 7340233137689
  • Manufacturer: Omron
  • Type: Snap Action Microswitch, SPST-NO
  • Contact Load: 0.001A / 6V DC (resistive)
  • Contact Resistance: Max. 100mΩ
  • Insulation Resistance: Min. 0.1GΩ
  • Switching Power: 0.59N
  • Mechanical Life: 20,000,000 cycles
  • Operating Temperature: -25°C to 65°C
  • Watertightness: IP40
  • Mounting: PCB (Printed Circuit Board)
  • Dimensions: 12.8 x 5.8 x 6.5 mm
  • Output Raster: 5.08 mm
  • Contact Material: Silver
  • Key Color: White
