Feeo FPV-63 4P PV Solar DC Miniature Circuit Breaker, 1000V DC up to 63A 6kA

SKU: FPV-63-4P-1000VDC Barcode: 7340233136811
Regular price 385 SEK
In stock - 38 items ready to ship
Delivery expected between 18 November and 19 November
Identifiers & specifications
  • Type DC Miniature Circuit Breaker (MCB)
  • Compatible with Feeo
  • SKU FPV-63-4P-1000VDC
  • Barcode 7340233136811

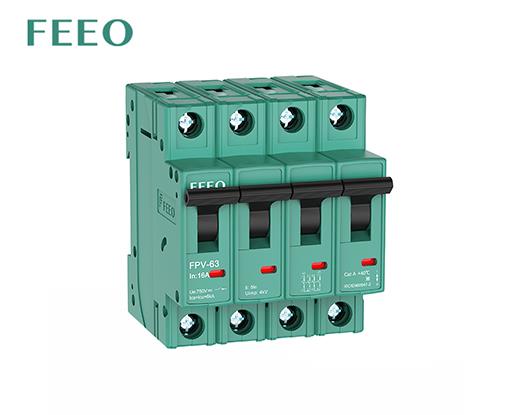

The Feeo FPV-63-4P is a four-pole DC miniature circuit breaker developed for photovoltaic solar systems, protecting DC circuits and equipment against overload and short circuit.

It is rated up to 1000 V DC with rated current options from 3 A to 63 A and an ultimate short-circuit breaking capacity (Icu) of 6 kA.

It has a C tripping curve and mounts on a standard DIN rail in a flame-retardant thermoplastic housing, suiting PV string protection, combiner boxes and DC distribution.

Feeo FPV-63 datasheet (PDF)
