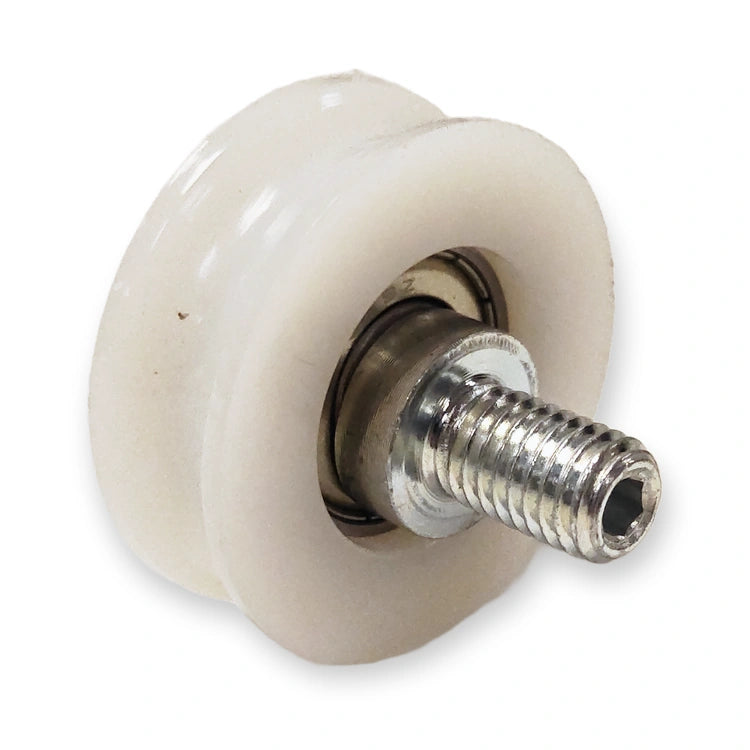

Eccentric door roller 44/38x15 mm with M10 hex-socket stud, angled view on white background.

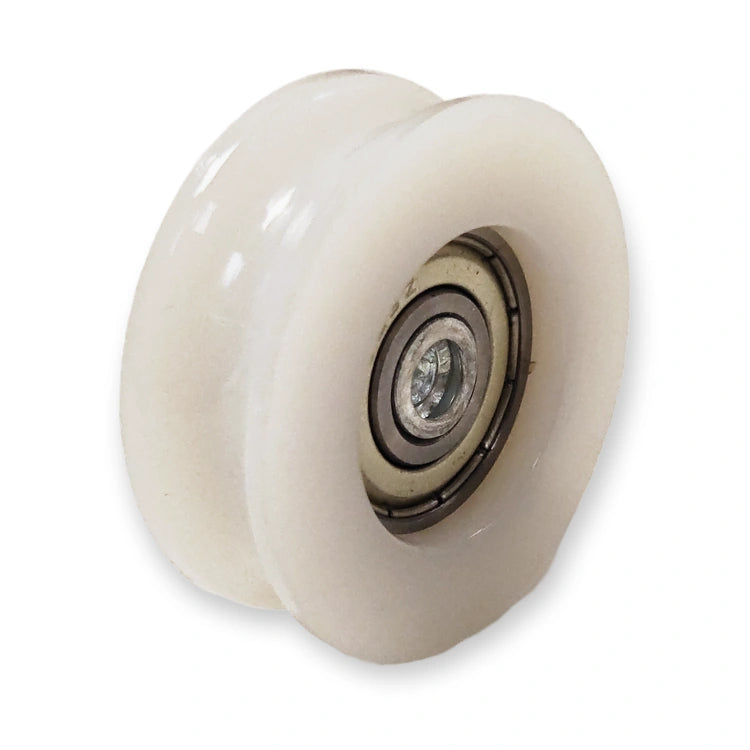

Eccentric door roller 44/38x15 mm, bearing side on white background.

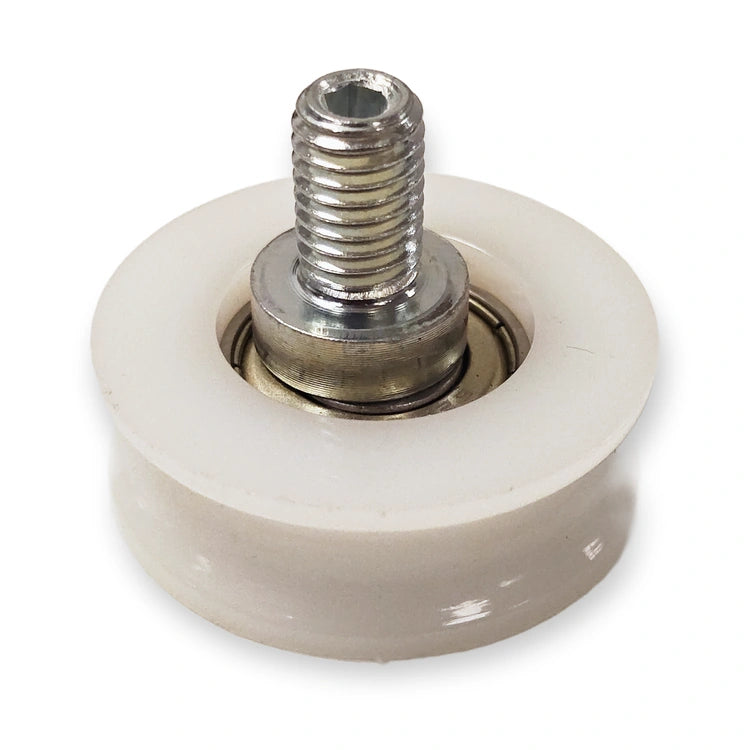

Eccentric door roller 44/38x15 mm, M10 stud upright on white background.
Eccentric door roller 44/38x15 mm with M10 hex-socket stud, angled view on white background.
Eccentric door roller 44/38x15 mm, bearing side on white background.
Eccentric door roller 44/38x15 mm, M10 stud upright on white background.

We strive to have accurate product images, but illustrations may appear.

IGV

IGV Compatible Eccentric Door Roller 44/38x15 mm M10, 629 Bearing

SKU: P9C0160-3rd Barcode: 7340233175575
På lager - 16 varer tilgængelige
Delivery expected between 12 November and 13 November
Identifiers & specifications

Roller measurements

44 mm 38 mm 15 mm Front view Side view
Outside diameter
44 mm
Groove diameter (D2)
38 mm
Width (B)
15 mm
Thread size
M10

Measurement guide · not to scale

  • Produkttype Hanger Roller
  • Kompatibel med IGV
  • SKU P9C0160-3rd
  • Barcode 7340233175575
  • Eccentric axle Yes
  • Outside diameter (D1), mm 44
  • Groove diameter (D2), mm 38
  • Roller profile U-profile
  • Width (B), mm 15
  • Thread (M) M10

IGV Eccentric Door Roller 44/38x15 mm, M10

Replacement eccentric hanger roller for IGV lift doors. The eccentric M10 stud lets the roller be adjusted when the door panel is set up.

  • Outer diameter: 44 mm, 38 mm in the groove
  • Width: 15 mm
  • Groove: round (U) profile
  • Bearing: 629 shielded ball bearing
  • Stud: M10 eccentric, hex socket
  • Material: white nylon
  • Make: replacement part, not made by IGV
