Forside » 40/10 Hanger Roller 48/41x14mm M12 Concentric OEM

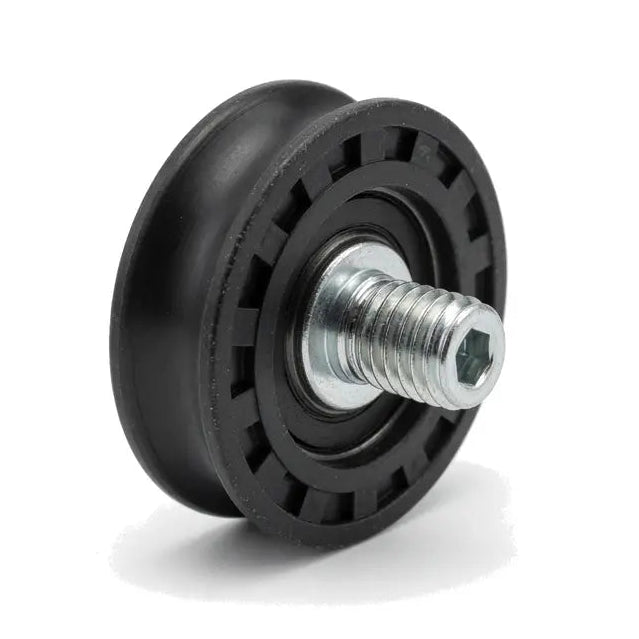

Fermator 40/10 Hanger Roller 48/41x14mm M12 Concentric OEM (PFR-620000000), black wheel with ribbed rim and threaded hex bolt from side, on white background.
Fermator 40/10 Hanger Roller 48/41x14mm M12 Concentric OEM PFR-62
Fermator 40/10 Hanger Roller 48/41x14mm M12 Concentric OEM (PFR-620000000), black wheel with ribbed rim and threaded hex bolt from side, on white background.
Fermator 40/10 Hanger Roller 48/41x14mm M12 Concentric OEM PFR-62

Vi bestræber os på at have nøjagtige produktbilleder, men der kan forekomme illustrationer.

Fermator

40/10 Hanger Roller 48/41x14mm M12 Concentric OEM

SKU: PFR-620000000 Stregkode: 7340233124214
På lager - 98 varer tilgængelige
Delivery expected between 6 November and 9 November
Identifiers & specifications
  • Produkttype Hanger Roller
  • Kompatibel med Fermator
  • SKU PFR-620000000
  • Barcode 7340233124214

Concentric Upper Roller Ø48 mm for 40/10 Doors (PFR-62)

Hanger roller for 40/10 car and landing door operators. The M12 centre pin is concentric, which makes this the upper running roller in the hanger plate — it carries the door panel along the track, while the eccentric lower roller sets the anti-jump clearance underneath. Round groove profile.

Specifications

  • Outer diameter: Ø 48 mm
  • Groove diameter: Ø 41 mm
  • Width: 14 mm
  • Groove: round, 10 mm
  • Centre pin: M12 x 13, concentric
  • Bearing: 6002-2Z

Fits

  • Fermator 40/10 — car and landing doors
  • Fermator 40/10 VVVF, 40/10 PM Compact, 40/10 MC
  • Schindler Varidor 15
